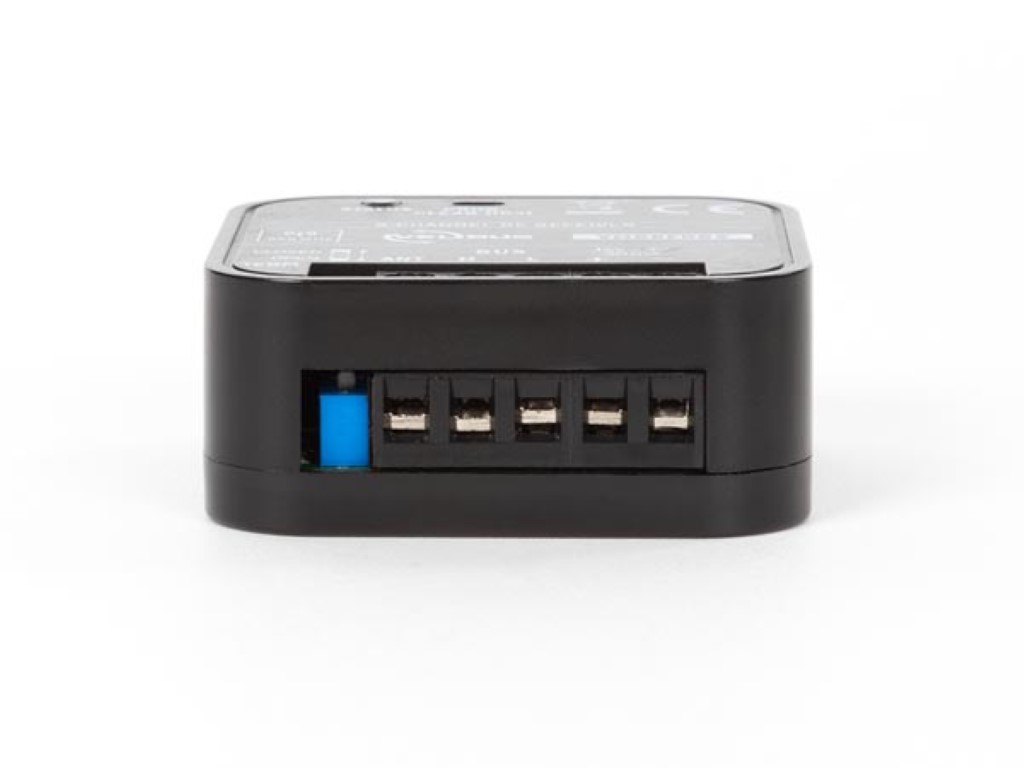

8-channel RF receiver

Features
• wireless remote control of entry gates, garage doors, lighting, blinds, etc.
• the receiver simulates 8 push button channels on the Velbus system
• wide range of operation (up to 250 m in open area)
• works together with 2-channel handheld transmitter VMBRFT2H and 4-channel handheld transmitters VMBRFT4H
• the 2-channel transmitter can control channels 1 & 2, or 3 & 4, or 5 & 6, or 7 & 8
• the 4-channel transmitter can control channels 1 to 4, 3 to 6, or 5 to 8
• assigning transmitters can be done manually or via the free VELBUSLINKprogram
• LED indication for receive status and learning mode
• adjustable channel response time (0, 1, 2 or 3 seconds)
• detection of short or long button press
• configurable multi-channel operation, the next channel is selected at each press (up to 8 channels)
• configurable dual channel push button, a different channel is selected depending on the length of the push (short or long push)
• extensive day, week and year programs plus a built-in astronomical clock (sunrise and sunset timing) are included to operate the receiver channels automatically
• uses one address (configurable in VELBUSLINK)
• configurable by using the Velbus PC interface (VMB1USB or VMBRSUSB) and the free VELBUSLINKprogram
• precautions:
• electrically conductive materials (eg. metal) in the vicinity may interfere with the RF signal
• using multiple transmitters on the same receiver at exactly the same time (within 100ms of each other) may cause a channel to remain pressed until the next button press, or until a timeout of 2 minutes has expired (whichever comes first)
• built-in (additional external antenna can optionally be connected)
