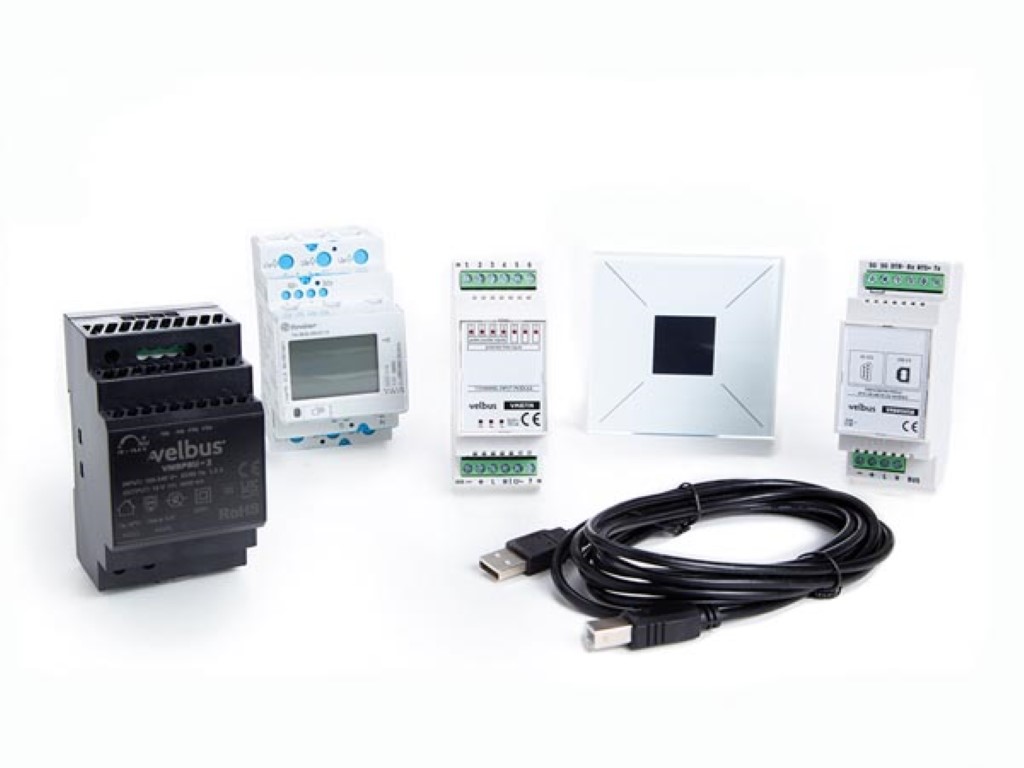

Velbus Energy Monitoring Set (White)

Power management is crucial to keep your energy bill low. Consumers with peak demand pay more than consumers who spread their electricity consumption. Thanks to the Velbus solution, you have a simple and easy-to-install energy monitoring system that allows you to keep an eye on your energy usage and make savings if necessary. The Velbus energy meters measure both energy consumption and the return of excess energy to the electricity grid (for example from solar panels). The measured values are displayed on the control panel with different colors: green for feeding back into the electricity grid, orange for consumption between 0 and 2.5 kWh, and red for large-scale consumption from 2.5 kWh. This gives you a clear picture of your consumption and allows you to intervene if necessary. This solution works with any type of installation: 3 phase/1 phase, digital counter/analog counter, no solar/with solar, dual tariff/single tariff, bi-directional. Pre-programmed, plug-and-play: all in one box with an installation time of approx. 30 min. Proven technology and 10-year warranty on Velbus HW, made in Belgium & Italy. Expandable Velbus home automation solution: add IoT functionality and extra relay modules to control your home appliances.

Features
• VMBPSU-2: Velbus power supply 15V 4A
• FIN7M.38.8.400.0112: Bi-directional energy meter with two SO pulse outputs
• Pre-configured VMB7IN: Velbus 7 channel input module
• Pre-configured VMBELO-PF: Edge Lit control module with OLED display & temperature controller
• VMBRSUSB: Velbus configuration module with 2m USB cable
• Step-by-step starter guide:
