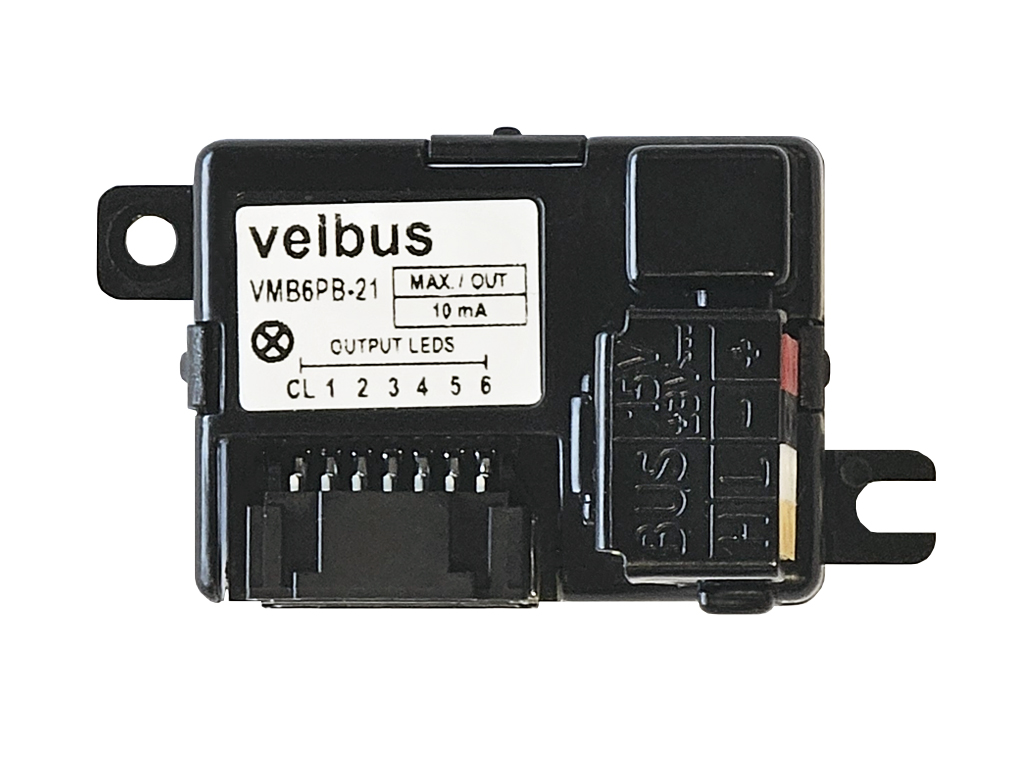

Push-button interface with 6 channels for universal mounting

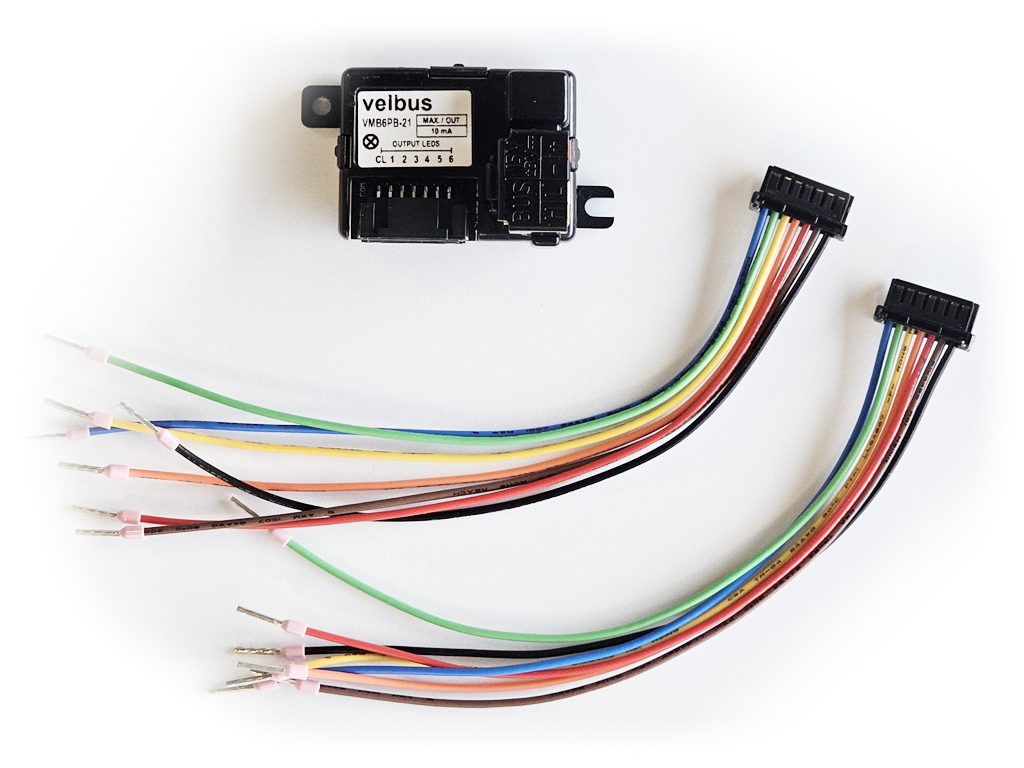

Easily enhance your home automation experience with the VMB6PB. This versatile device allows you to integrate any type of switch into your Velbus network, effectively turning it into a smart Velbus switch. With LED feedback options, you can instantly confirm whether your switch commands have been executed. Take control of your home with the VMB6PB. Check and adjust the lights in your children's rooms from anywhere, ensuring their safety and comfort. When you're leaving, you can effortlessly power down your entire system or program it to create the perfect atmosphere automatically in the evening. With electronic addressing and a wealth of additional features, such as alarms, sunrise-related yearly programs, and multi-button operation, the possibilities are truly limitless. The VMB6PB's compact size and WAGO KNX/EIB connector simplify the installation process, providing a fast, screwless, and reliable setup directly into your built-in box. To make things even more convenient, we've included pre-stripped cables for easy VMB6PB connection to your switch and LED feedback system, along with a WAGO tool for effortless wire removal. Elevate your home automation experience with the VMB6PB - your gateway to a smarter, more connected home.

Features
• connection possibility for up to 6 pushbuttons
• connection possibility for a notification LED for each pushbutton (common anode OR cathode)
• compatible with 12V and 24V LEDs (max 10mA / channel)
• compatible with (but not limited to) the following LEDs
• Niko 170-37212 12V blue LED
• Niko 170-37224 24V blue LED
• Niko 170-37424 24V amber LED
• backlit pushbuttons (if LEDs are connected)
• complete configuration via Velbus PC interface
• up to 250 addresses
• reaction time for each pushbutton of 0, 1, 2 or 3 seconds
• all settings are memorized in case of a power failure
• WAGO KNX/EIB connector for a fast screwless and reliable connection (requires solid core EIB grade cables with 4x 0,8 mm diameter)
