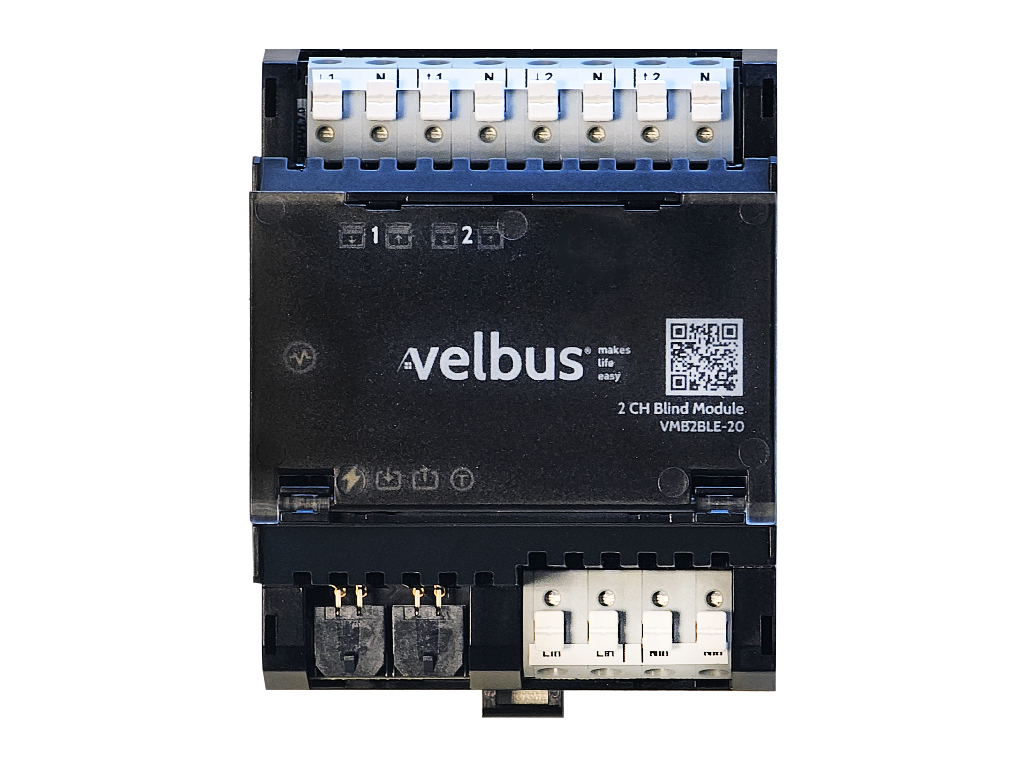

Two channel blind module

Two channel blind module

167.00 € 167.00 €
  • Protocol
  • Input voltage rating VDC range
  • Maximum current consumption
  • Maximum contact current rating VAC
  • Maximum contact current rating VDC
  • Maximum contact voltage rating VAC
  • Maximum contact voltage rating VDC
  • Possible address
  • Mounting type
  • Instruction manual languages
  • With LED indicators
  • Number of channels
  • DIN rail
  • Number push buttons
  • Number of modes
  • Time out
  • Height unit
  • Width unit
  • Depth unit
  • Weight unit
  • Material
  • Colour unit
  • Width DIN modules
  • Additional colour
Contact Us
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Bring advanced blind and shutter automation to your home with the Velbus VMB2BLE-20, the new generation of the popular VMB2BLE module. This updated version combines the trusted functionality of the VMB2BLE-10 with enhanced performance thanks to a more powerful processor, four virtual channels, and built-in logic functions — making it ready for future smart home applications. Easily control blinds, shutters, or curtains through Velbus control panels, smartphone apps, or automated schedules based on daylight conditions. Program actions according to sunrise and sunset, or use logical conditions to optimize comfort and energy efficiency. The VMB2BLE-20 offers over one hundred operation modes (including up, down, set position, force, and inhibit), and provides real-time feedback to your Velbus system so you always know the exact status of your blinds. Built-in motor protection ensures safe and reliable operation by preventing conflicting commands. Combine convenience, safety, and energy efficiency with this powerful and future-ready module — the perfect choice for any modern home or building automation setup.

Features
• can be used to control an electric roll-down shutter, sunblind...
• manual control on the module
• controllable through VELBUS (no direct input for push buttons)
• programmable with PC
• feedback towards the control modules
• address is set electronically
• 105 modes: up, down, up/down, set to position, force, inhibit, ...
• LED indicators for:
• UP and DOWN relay outputs
• UP and DOWN operation modes
• power voltage
• data reception and forwarding through VELBUS

Specifications

Connectivity & Smart Features
Protocol Velbus CANbus (Molex)
Electrical Properties
Input voltage rating VDC range 12-18 V
Maximum current consumption 200 mA
Maximum contact current rating VAC 16 A
Maximum contact current rating VDC 12 A
Maximum contact voltage rating VAC 230 V
Maximum contact voltage rating VDC 24 V
Functional Features
Possible address 250
Installation & Mounting
Mounting type DIN-rail mounting
Other
Instruction manual languages Dutch / English / French
With LED indicators Yes
Performance & Technical Specs
Number of channels 2
DIN rail Yes
Number push buttons 2
Number of modes 105
Time out Programmable per channel (1s to 5m34 s or continuously on)
Physical properties
Height unit 90 mm
Width unit 71 mm
Depth unit 58 mm
Weight unit 170 g
Material Flame-retardant PC (polycarbonate)
Colour unit Black
Width DIN modules 4
Additional colour Green
